TUV EN15194 Battery Powered Folding Bike 36V 10Ah Li Ion Battery

    Buy cheap TUV EN15194 Battery Powered Folding Bike 36V 10Ah Li Ion Battery from wholesalers

    Buy cheap TUV EN15194 Battery Powered Folding Bike 36V 10Ah Li Ion Battery from wholesalers
    • Buy cheap TUV EN15194 Battery Powered Folding Bike 36V 10Ah Li Ion Battery from wholesalers

    TUV EN15194 Battery Powered Folding Bike 36V 10Ah Li Ion Battery

    Ask Lasest Price
    Brand Name : DREAM WHEEL
    Model Number : HP-E052c
    Certification : EN15194 (TUV)
    Price : USD400 to 450
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 2000PCS per month
    Delivery Time : 35-40days
    • Product Details
    • Company Profile

    TUV EN15194 Battery Powered Folding Bike 36V 10Ah Li Ion Battery


    TUV EN15194 Standard Folding Battery Powered Bike 36v 10ah Li - Ion Battery


    Quick Details


    1. Motor power: 36V 250W rear GEAR motor

    2. Frame material: Aluminum alloy 6061

    3. Lithium battery: 36V 10.4Ah, 374Wh

    4. Certification: EN15194 by TUV

    5. Wheel size: 20”

    6. Brake system: Disc brakes for front wheel

    7. Derailleur system: Shimano 7 speed

    8. Pedals assisted system: Yes. throttle can be optional


    Product Descriptions


    HP-E052c is one good design folding electric bike in 2017. 36V 10.4Ah li-ion battey pack in the rear, take away to charge easily.


    And this new version bike have certificated by EN15194 TUV test. It's legal for European areas and some countries that accept this standard the same as EU.


    Specifications


    Model numberHP-E052c
    Motor36V 250W rear GEAR motor
    Battery36V 10.4Ah li-ion battery
    Charge time4-6h
    Charger110-240V, 36V 2A, plug can be customized
    Controller36V 14A
    Speed25Km/h
    Driving distance45-55km by PAS
    Weight22.5Kgs
    Packing dimension860x460x715mm
    Panel/speedometerLED style
    Wheel20”
    Tire20”x2.125, KENDA
    Chain1/2*3/32*114L
    FrameAluminum alloy 6061
    Forkwith suspension
    Shift leverShimano 7 speed
    Rear derailleurShimano RD-TX55
    Front brakeDisc Brake
    Rear brakeV Brake
    Brake leversAluminum alloy
    RimsAluminum alloy
    SpokesFront:13GX176/178; Rear:12GX123/125;
    PedalsFolding type
    Chainwheel1/2*3/32*52T, aluminum
    CranksAluminum, 170L
    Freewheel14-28T
    HandlebarAluminum, black, foldable
    StemAluminum, black, foldable
    Grip140MM
    SeatClassic style, comfortable
    Seat tubeSteel
    LampLED for front and rear
    Wheel base1020mm
    Min ground clearance88mm
    Saddle ground clearanceMax:990mm; Min:790mm
    Handlebar ground clearance1120mm
    Licence requirementNO

    Pictures Show

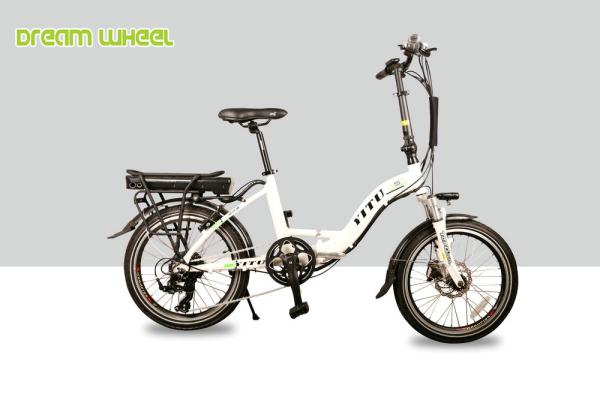

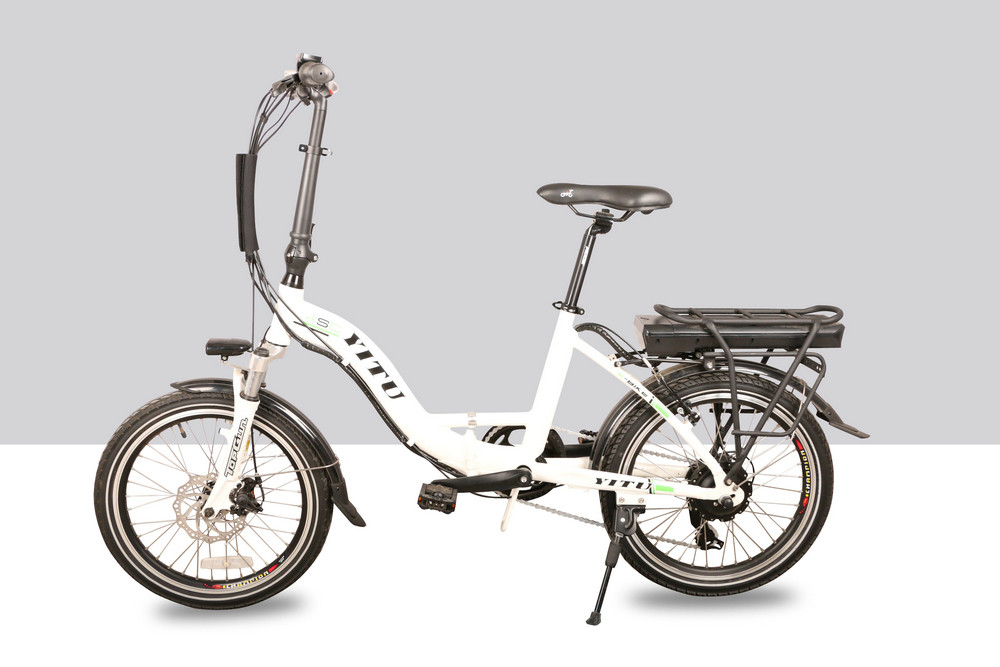

    EN15194 TUV certificated 2017 20" folding electric bike Details

    TUV EN15194 Battery Powered Folding Bike 36V 10Ah Li Ion Battery


    TUV EN15194 Battery Powered Folding Bike 36V 10Ah Li Ion Battery


    Disc brakes system, and 20" x 2.125 Kenda tire


    TUV EN15194 Battery Powered Folding Bike 36V 10Ah Li Ion Battery


    TUV EN15194 Battery Powered Folding Bike 36V 10Ah Li Ion Battery
