48V 350W Pedal Assist Electric Bike ​14" x 2.5 Tire Aluminum Wheel

    Buy cheap 48V 350W Pedal Assist Electric Bike ​14" x 2.5 Tire Aluminum Wheel from wholesalers

    Buy cheap 48V 350W Pedal Assist Electric Bike ​14" x 2.5 Tire Aluminum Wheel from wholesalers
    • Buy cheap 48V 350W Pedal Assist Electric Bike ​14" x 2.5 Tire Aluminum Wheel from wholesalers

    48V 350W Pedal Assist Electric Bike ​14" x 2.5 Tire Aluminum Wheel

    Ask Lasest Price
    Brand Name : DREAM WHEEL
    Model Number : EBS694
    Certification : CE
    Price : USD
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 5000pcs per month
    Delivery Time : 20-25 days
    • Product Details
    • Company Profile

    48V 350W Pedal Assist Electric Bike ​14" x 2.5 Tire Aluminum Wheel


    48V 350W two wheels cheap electric bike Pedals assisted electric bike/scooter 25-32km/h


    Quick Details

    1. Motor power: 48V 350W brushless motor

    2. Frame material: steel

    3. Lead acid battery: 48V 12Ah

    4. Wheel size: 14”x2.5

    5. Brake system: drum brake for front; Servo brake for rear

    6. Headlamp: LED style

    7. Speed: 25-32KM/H

    ​8. Seat: for two persons


    Product Descriptions

    ​EBS694 is one new style Mini electric scooter/bike, made in 2016.


    ​14" X2.5 tire aluminum wheel, sales well South-east countries.


    The battery use 48V 12Ah lead acid gel battery exporting version, drive distance 40km per charge. Also support lithium battery. It's convenient ride e-bike go to work, go shopping, take child to school.


    The front brake system made with drum brake. Rear brake with servo safety brake with locking motor function.


    Components Introduction

    1. 48V 12Ah battery, can make your travel distance over 40km by PAS.


    2. Drum brake system, can ensure your safe drive.


    3. LED headlamp, turning lights and brake light.


    4. Rear Servo safety brake with locking motor function, to make your bike more security. When insert the key in brake hole, and turn right direction, the motor will be Locked, can not move any more.


    Specifications

    Model number

    EBS694

    Motor

    48V 350W rear brushless motor

    Battery

    48V 12Ah lead acid battery, removable easily

    Charge time

    4-8h

    Charger

    48V 1.8A, plug can be customized

    Controller

    48V 15A

    Speed

    25-32Km/h

    Driving distance

    40-45km

    Weight

    52Kgs

    Packing dimension

    1480x310x860mm

    Panel/speedometer

    LCD style

    Driving mode

    Throttle

    Wheel

    14”

    Tire

    14”x2.5

    Chain

    --

    Frame

    Steel 14”

    Fork

    Steel with suspension, 14”

    Shift lever

    --

    Rear derailleur

    --

    Front brake

    Drum Brake

    Rear brake

    Servo safety Brake with locking motor function

    Brake levers

    Aluminum

    Rims

    Aluminum alloy

    Spokes

    --

    Pedals

    Normal

    Chainwheel

    --

    Cranks

    Steel

    Freewheel

    --

    Handlebar

    Steel

    Stem

    --

    Grip

    120MM

    Seat

    all black

    Seat tube

    --

    Headlamp

    LED style

    Fenders

    Plastics

    Wheel base

    1020mm

    Min ground clearance

    120mm

    Saddle ground clearance

    730mm

    Handlebar ground clearance

    --

    Licence requirement

    NO

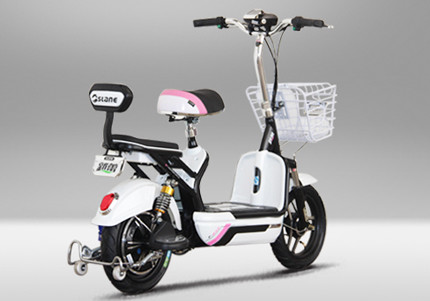

    Pictures Show

    48V 350W Pedal Assist Electric Bike ​14" x 2.5 Tire Aluminum Wheel


    48V 350W Pedal Assist Electric Bike ​14" x 2.5 Tire Aluminum Wheel


    Payment Method

    For trial order, we accept Paypal payment. For full container order, we use 30% down payment and 70% rest depends on Bill of Lading.


    Delivery Time

    The sample order, will finish the production in 15days; for full container order, finish in 30days.


    Our advantages

    11 years sales experiences in oversea market. We are able to be your purchasing consultants for new buyers.

    We pay more attention on products quality. Our main market are European countries, North America and South America.

    Our products contain electric bike, electric scooter, electric motorcycle, mobility scooter and conversion kits, can meet customer’s variety of demands.

    We built 200 square meters professional Show room to show some popular models. And one hour to Shanghai and Ningbo port.

    Our electric bicycles comply with CE, RoHS and EN15194 regulations.
