    25km/H 350 Watt Electric Motorized Mountain Bike 700C MTB Tire

    Ask Lasest Price
    Brand Name : DREAM WHEEL
    Model Number : EBS318
    Certification : EN15194
    Price : USD
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 2500PCS per month
    Delivery Time : 35days
    • Product Details
    • Company Profile

    25km/H 350 Watt Electric Motorized Mountain Bike 700C MTB Tire

    25km / h 350 Watt Motorized Mountain Bike Electric Bicycles 700C MTB tire


    Quick Details

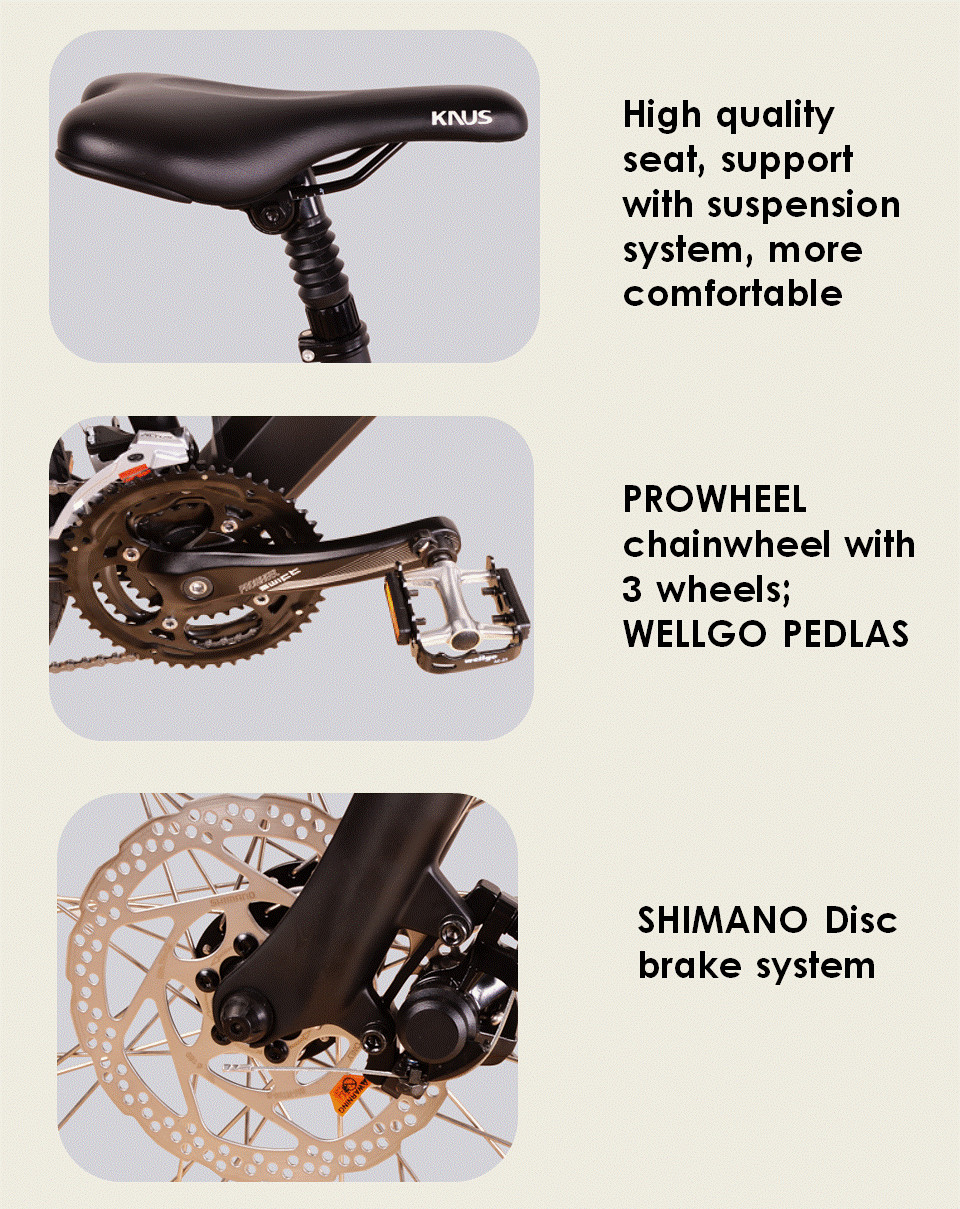

    1. Motor power: 36V 350W BAFANG rear GEAR motor

    2. Frame material: Aluminum alloy 6061

    3. Lithium battery: 36V 10.4Ah Samsung cells

    4. Certification: EN15194

    5. Wheel size: 700C

    6. Brake system: Shimano Disc brake for both wheels

    7. Derailleur system: Shimano RD-M370

    8. Pedals assisted system: Yes. throttle can be optional


    Product Descriptions


    This electric mountain bike is our new Design model in 2015, class as High end product series. This is an exciting bike, combine many high end parts, like Shimano mechanical Disc brake, Shimano Derailleur, BAFANG rear Gear hub motor, Tektro brake lever and RST hydraulic suspension. At present, main market is Europe and America.


    This electric bike is a beautifully integrated Lithium-ion battery pack. The downtube is cut away in order to sink the pack “inside” part way which provides more security and strength while lowering the center of mass.


    Components


    1. BAFANG rear gear motor, China famous electric bike motor supplier. This rear-drive motor, which is compatible with the disc brake, has a rated power of 250-500W, a reduction ratio of 1: 5 and a maximum torque of 48 N.m, providing ideal power for vehicles. Strong and efficient, this motor, working together with a cassette speed change mechanism, greatly enhances riding comfort and is suitable for touring bikes, commuter bikes and mountain bikes.


    2. Shimano rear 9 speed, plus front 3 speed, can offer 27 level speed.


    3. Shimano mechanical disc brake, bring high efficient brake performance.


    4. RST fork, mountain bike series, made with oil pressure system, mechanical lock-out, adjustable pressure.


    Key Features


    25km/H 350 Watt Electric Motorized Mountain Bike 700C MTB Tire25km/H 350 Watt Electric Motorized Mountain Bike 700C MTB Tire


    Specifications


    Model number

    EBS318

    Motor

    BAFANG, 36V 350W rear GEAR motor

    Battery

    36V 10.4Ah lithium, SAMSUNG cells

    Charge time

    4-8h

    Charger

    110-240V, 36V 2A, plug can be customized

    Controller

    36V 14A

    Speed

    32Km/h

    Driving distance

    45-55km by PAS

    Weight

    26.50Kgs

    Packing dimension

    1730x250x780mm

    Panel/speedometer

    LCD display, JIATE new style

    Wheel

    700C

    Tire

    700Cx1.75, KENDA

    Chain

    1/2*3/32*118L, KMC rust-proof

    Frame

    Aluminum alloy 6061

    Fork

    700C, travel 60MM, 28.6*25.4*230L*30*100MM

    Shift lever

    Shimano 9 speed

    Rear derailleur

    Shimano RD-M370

    Front brake

    Shimano Mechanical Disc Brake

    Rear brake

    Shimano Mechanical Disc Brake

    Brake levers

    TEKTRO

    Rims

    Aluminum alloy,700C*1.75*36H*13G

    Spokes

    Front:13GX275/277; Rear:13GX231/233;

    Pedals

    Wellgo, with ball

    Chainwheel

    1/2*3/32*28/38/48T*170L

    Cranks

    Aluminum, 170L

    Freewheel

    11-32T, 9 level

    Handlebar

    ZOOM Aluminum, W620x2.0T

    Stem

    ZOOM Aluminum, adjustable

    Grip

    22.4/136MM, Black

    Seat

    KS8053, Gel

    Seat tube

    Aluminum with suspension, 27.2*300*2.0T

    Lamp

    LED for front

    Wheel base

    1270mm

    Min ground clearance

    110mm

    Saddle ground clearance

    Max:990mm; Min:790mm

    Handlebar ground clearance

    1100mm

    Licence requirement

    NO


    Pictures Show


    25km/H 350 Watt Electric Motorized Mountain Bike 700C MTB Tire25km/H 350 Watt Electric Motorized Mountain Bike 700C MTB Tire
