    Red 38km/h Electric Pedal Assist Mountain Bike 48V 500W Gear Motor

    Ask Lasest Price
    Brand Name : DREAM WHEEL
    Model Number : HP-E004 CC
    Certification : EN15194
    Price : USD
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 2500PCS per month
    Delivery Time : 33days
    • Product Details
    • Company Profile

    Red 38km/h Electric Pedal Assist Mountain Bike 48V 500W Gear Motor

    Red Pedal Assist high end lectric Mountain Bikes 48V 500W Gear Motor Cruiser Bicycle


    Quick Details


    1. Motor power: 48V 500W DAPU rear GEAR motor

    2. Frame material: Aluminum alloy 6061

    3. Lithium battery: 48V 13Ah Samsung cells

    4. Certification: EN15194

    5. Wheel size: 26"

    6. Brake system: Tektro Hydraulic Disc brake for both wheels

    7. Derailleur system: Shimano RD-M390

    8. Pedals assisted system: Yes. throttle can be optional


    Product Descriptions


    This electric mountain bike is our classic model, But we have improve this bike with some more high end components. We have sold in Canada market. It’s a exciting experience to drive it. It has got CE( EN15914) certification. This electric city bike adopt Shimano 7 derailleur , and 48V 5000W DAPU classic rear mounted motor, can offer strong power to climb hills. The max speed can reach 38km/h.

    The brakes are powerful Tektro Hydraulic Disc Brakes in both the front and rear, providing quick stopping power. No matter drive in wet or dry road condition, always make excellent performance.


    Components


    1. DAPU rear Gear motor, A famous electric bike motor supplier, the advanced technology from Japan. This rear-drive motor, which is compatible with the disc brake.


    2. RST fork, MTB trekking series, made with oil pressure system, adjustable preload, hydraulic remote lock-out.


    3. Tektro hydraulic disc brake, from TAIWANG high quality brake system supplier.


    4. Velo seat, high end seat supplier from TAIWAN, in any case, the wider and more comfortable seat can provide more experiences for riders.


    5. SPANNINGA high quality LED headlamp, from Netherlands


    Specifications


    Model number

    HP-E004 CC

    Motor

    DAPU, 48V 500W rear GEAR motor

    Battery

    48V 13Ah lithium, SAMSUNG cells

    Charge time

    4-8h

    Charger

    110-240V, 48V 2.5A, plug can be customized

    Controller

    48V 18A

    Speed

    32Km/h

    Driving distance

    55-66km by PAS

    Weight

    28.3Kgs

    Packing dimension

    1700x250x780mm

    Panel/speedometer

    LCD style, DAPU

    Wheel

    26”

    Tire

    26”x1.75, KENDA off road tire

    Chain

    1/2*3/32*128L, KMC rust-proof

    Frame

    Aluminum alloy 6061

    Fork

    26”, travel 80MM, 28.6*25.4*250L*102MM

    Shift lever

    SL-TX50-7R

    Rear derailleur

    Shimano RD-M390

    Front brake

    TEKTRO Hydraulic Disc Brake

    Rear brake

    TEKTRO Hydraulic Disc Brake

    Brake levers

    TEKTRO

    Rims

    Aluminum alloy,26”*1.75*36H*13G

    Spokes

    Front:13GX245/247; Rear:13GX207/209;

    Pedals

    Wellgo, with ball

    Chainwheel

    1/2*3/32*44T

    Cranks

    Aluminum, 170L

    Freewheel

    14-28T

    Handlebar

    ZOOM Aluminum, W610x2.0T

    Stem

    ZOOM Aluminum, Adjustable

    Grip

    92/135MM, black

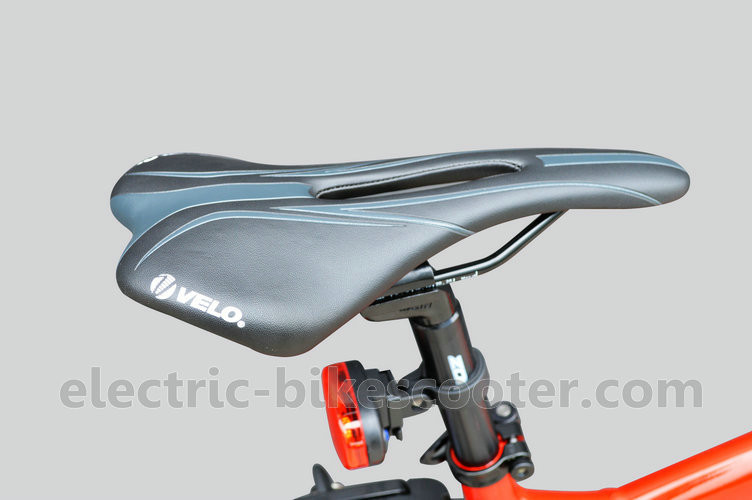

    Seat

    Velo, 1663

    Seat tube

    Aluminum with suspension, 27.2*300*2.0T

    Lamp

    LED for front, SPANNINGA

    Wheel base

    1170mm

    Min ground clearance

    110mm

    Saddle ground clearance

    Max:990mm; Min:830mm

    Handlebar ground clearance

    1020mm

    Licence requirement

    NO


    Pictures Show
