    25km/H Pedal Assist Electric Trike 48V 350W Brushless Motor

    Ask Lasest Price
    Brand Name : DREAM WHEEL
    Model Number : EBS718
    Certification : --
    Price : USD
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 1000PCS per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    25km/H Pedal Assist Electric Trike 48V 350W Brushless Motor

    Pedal Assisted Electric Mobility Scooter Tricycle Cargo Trike 48V 350W


    Quick Details


    1. Motor power: 48V 350W brushless motor

    2. Lead Acid Gel battery: 48V 20Ah

    3. Tire size: 20"x1.75 for front; 16"x1.75 for rear

    4. Brake system: V brake for front wheel; Drum brake for rear

    5. Pedals assisted system and Throttle: YES

    6. Max Speed: 25km/h (15.5mi/h)

    7. Storage: front and rear big baskets


    Product Descriptions

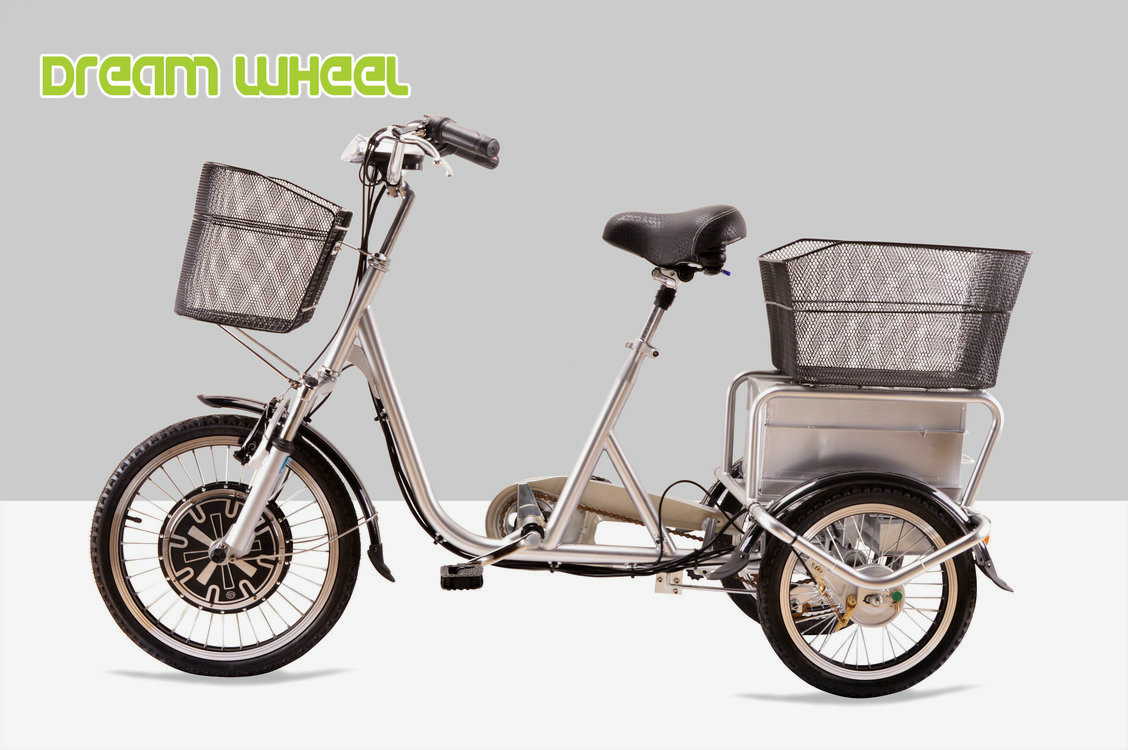

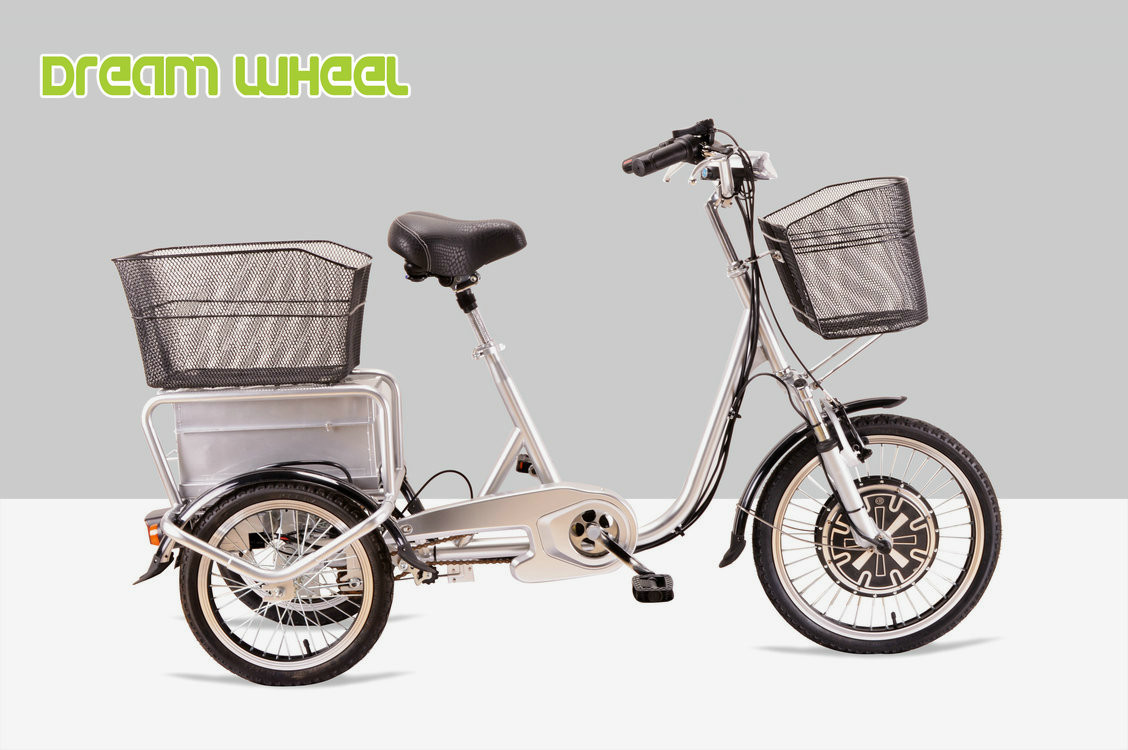

    EBS718, is one simple cargo electric bike with 3 wheels. The speed is 25km/h, motor can make 250W, so it can meet e-bike regulation for Europe.


    We install two baskets for this trike, it’s helpful to go shopping or take some goods.


    Components


    48V 20AH lead acid gel battery, can get you with 55km drive distance by PAS.


    The rear big basket, can take more goods as you need.


    Specifications


    Model number

    EBS718

    Motor

    48V 350W brushless motor

    Battery

    48V 20Ah lead acid gel battery

    Charge time

    4-8h

    Charger

    48V 2.5A, plug can be customized

    Controller

    48V 25A

    Speed

    25Km/h

    Speed mode

    Single

    Driving distance

    45-55km

    Weight

    65Kgs

    Packing dimension

    1600x550x850mm

    Package

    90% completed, one piece per carton

    Panel/speedometer

    --

    Driving mode

    Pedals assist system and throttle

    Alarm system

    No

    Wheel

    20" & 16"

    Tire

    20"x1.75 for front wheel; 16"x1.75 for rear wheel

    Chain

    steel

    Frame

    Paint with electrophoretic coating

    Fork

    with suspension

    Shift lever

    --

    Rear derailleur

    --

    Front brake

    Shimano V Brake

    Rear brake

    Drum Brake

    Brake levers

    Aluminum

    Rims

    Aluminum alloy

    Spokes

    --

    Pedals

    normal

    Chainwheel

    32T

    Cranks

    steel

    Freewheel

    16T

    Handlebar

    Steel

    Stem

    Steel

    Grip

    140MM

    Seat

    Normal

    Seat tube

    --

    Headlamp

    LED

    Fenders

    Plastics

    Wheel base

    1170mm

    Min ground clearance

    120mm

    Saddle ground clearance

    Max:980mm; Min: 820mm

    Handlebar ground clearance

    950mm

    Licence requirement

    NO
