    25km/h Battery Operated Electric Scooter Pedal Assist 16" X 3.0 Tire Drum Brake

    Ask Lasest Price
    Brand Name : DREAM WHEEL
    Model Number : HP-E72
    Certification : CE
    Price : USD
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 3500PCS per month
    Delivery Time : 20 to 30days
    • Product Details
    • Company Profile

    25km/h Battery Operated Electric Scooter Pedal Assist 16" X 3.0 Tire Drum Brake

    Battery Operated 250 Watt Scooter Pedals Assist 16" X 3.0 Tire Drum Brake European standard


    Quick Details

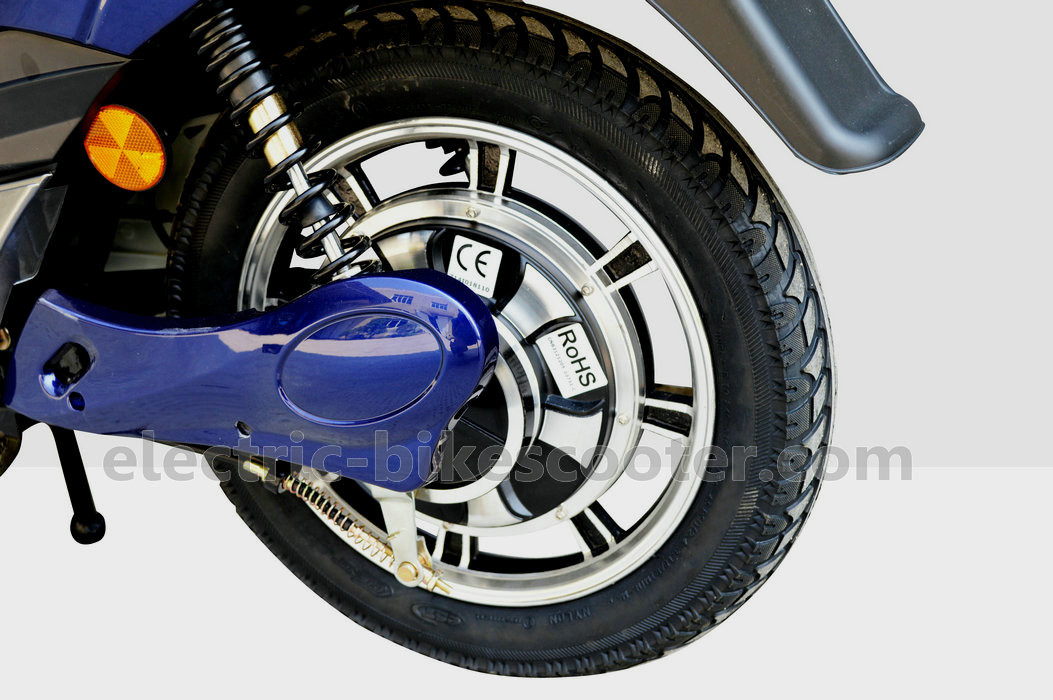

    1. Motor power: 48V 250W brushless motor

    2. Lead Acid Gel battery: 48V 20Ah

    3. Tire size: 16"x3.0

    4. Brake system: Drum brake for frontwheel

    5. Pedals assisted system and Throttle: YES

    6. Max Speed: 25km/h (15.5mi/h)


    Product Descriptions


    HP-E72 is one European standard pedals assist electric bike. 48V 250W motor, 25km/h speed, drive with pedals. All this make it can meet the regulations of Europe. No Licence, no plate and no tax .


    This model also support 48V 500W motor, 32km/h speed and pedals assist system. It’s available in Canada. Will class as bicycle.


    Components

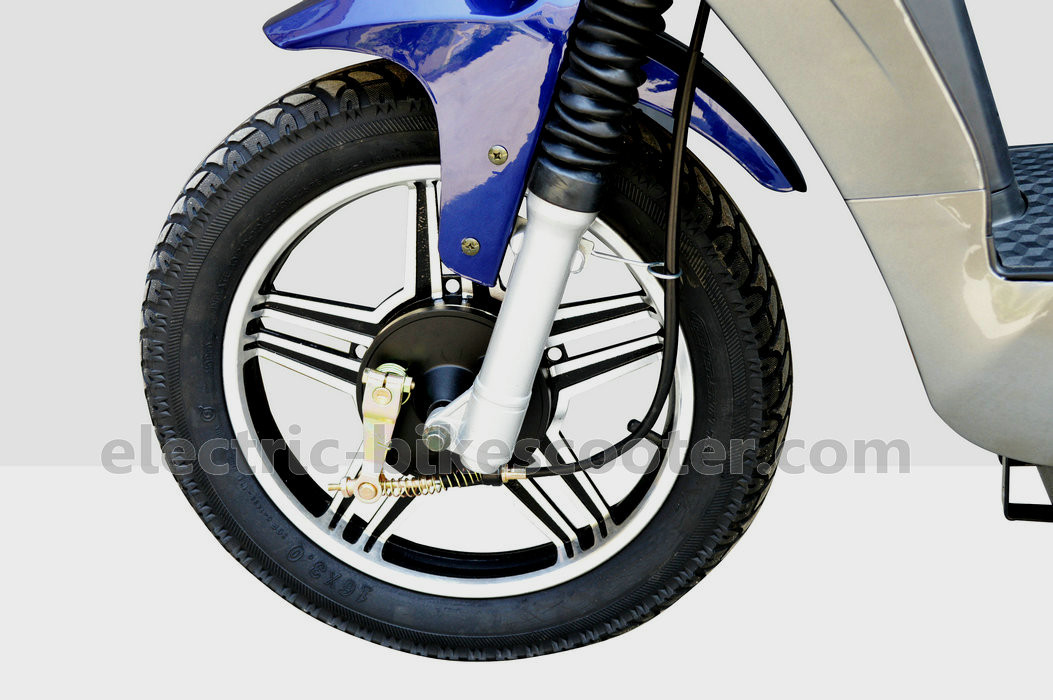

    1. Drum brake system. Keep good performance, also can lower the cost.


    2. Headlamp and tail light, with dual LED headlight.


    3. The 48V 20Ah battery, can be removable.


    4. The base width with only 22cm, it’s so narrow, like bicycle. You can image how comfortable when pedals.


    5. This model pass CE and RoHS certificates.


    6. 16”x3.0 CST tire. The tire is more wide, can bring better stability.


    Specifications


    Model number

    HP-E72

    Motor

    48V 250W brushless DC hub motor

    Battery

    48V 20Ah lead acid gel battery

    Charge time

    4-8h

    Charger

    48V 2.5A, plug can be customized

    Controller

    48V 20A

    Speed

    25Km/h

    Speed mode

    Single

    Driving distance

    55-65km

    Weight

    82.5Kgs

    Packing dimension

    1620x450x860mm

    Package

    85% completed, one piece per carton

    Panel/speedometer

    Normal style

    Driving mode

    Pedals assist and throttle

    Alarm system

    Remote alarm

    Wheel

    16”

    Tire

    16"x3.0

    Chain

    stainless

    Frame

    Paint with electrophoretic coating

    Fork

    Hydraulic suspension

    Shift lever

    --

    Rear derailleur

    --

    Front brake

    Drum Brake

    Rear brake

    Drum Brake

    Brake levers

    Aluminum

    Rims

    Aluminum alloy

    Spokes

    --

    Pedals

    normal

    Chainwheel

    28T

    Cranks

    steel

    Freewheel

    16T

    Handlebar

    Steel

    Stem

    --

    Grip

    140MM

    Seat

    Lengthen, comfortable, for two persons

    Seat tube

    --

    Headlamp

    Dual LED

    Fenders

    Plastics

    Wheel base

    1240mm

    Min ground clearance

    110mm

    Saddle ground clearance

    760mm

    Handlebar ground clearance

    980mm

    Licence requirement

    NO

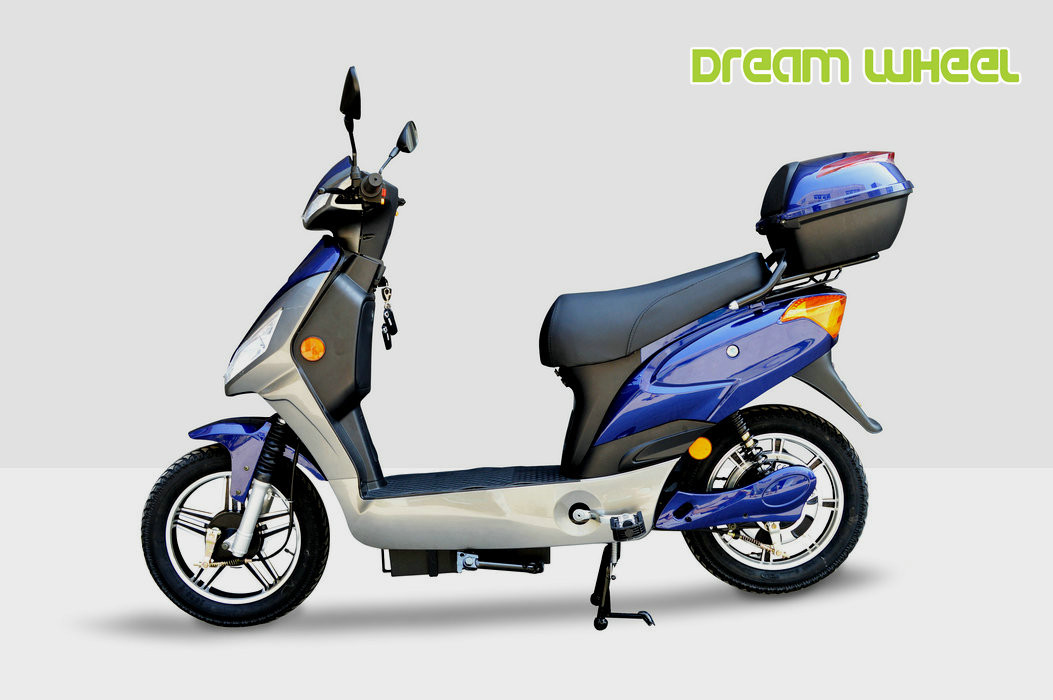

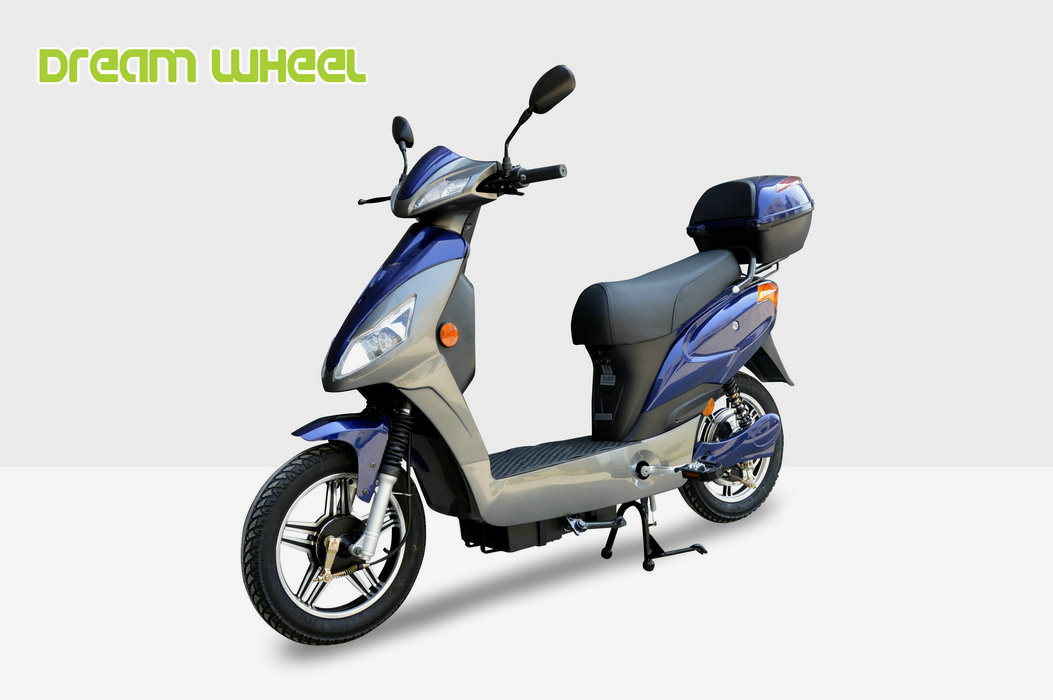

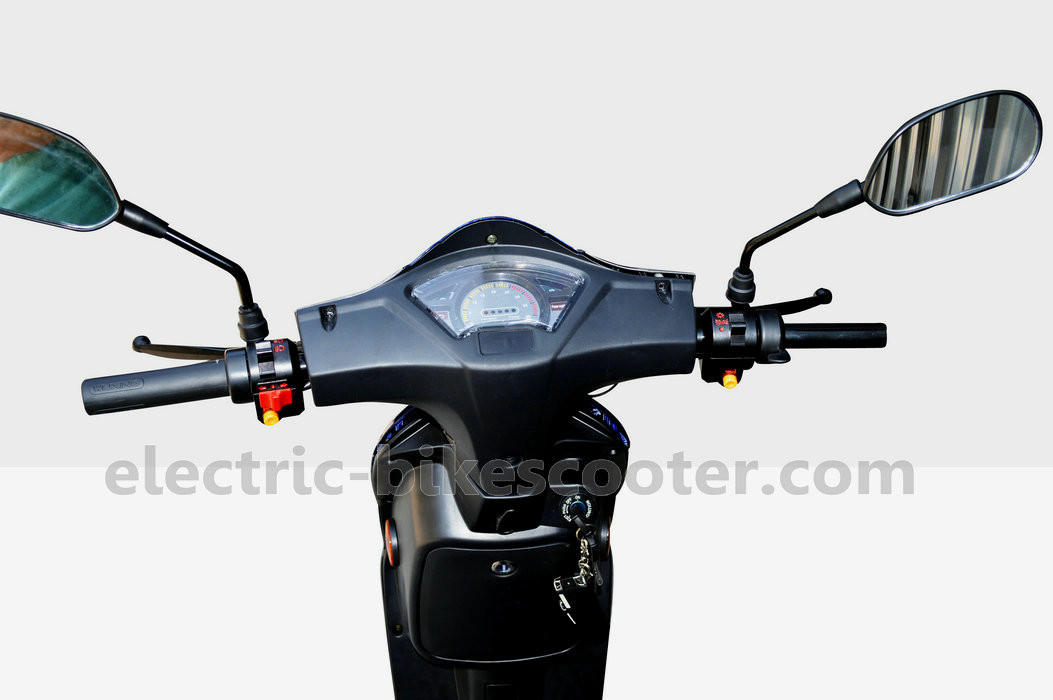

    Pictures Show
