    25km/H Electric City Bicycle 700C Front Wheel Gear Motor Roller Brake

    Ask Lasest Price
    Brand Name : DREAM WHEEL
    Model Number : EBS226
    Certification : EN15194
    Price : USD
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 2000pcs per month
    Delivery Time : 20-25days
    • Product Details
    • Company Profile

    25km/H Electric City Bicycle 700C Front Wheel Gear Motor Roller Brake

    Lady City Electric Bicycles Cruising Bike 700C Electric Front Wheel Gear Motor roller brake


    Quick Details


    1. Motor power: 36V 250W BAFANG front GEAR motor
    2. Frame material: Aluminum alloy 6061
    3. Lithium battery: 36V 7.8Ah Samsung cells
    4. Certification: EN15194
    5. Wheel size: 700C
    6. Brake system: Shimano V brake for front wheel; Roller brake for rear wheel
    7. Derailleur system: Shimano Nexus Inter 3
    8. Pedals assisted system: Yes


    Product Descriptions


    This electric city cruiser bike is popular in some countries, class as High end product series. This electric city bike adopt Shimano Nexus Inter 3 derailleur , and 36V 250W BAFANG super power front motor, can give driver different driving experiences.


    36V smart Samsung lithium battery, weight only 2.8 kgs, can move easily from bike. It is available to charge at home or any indoor place.


    Our seat support adopt suspension function, can reduce jolt on up and down road.


    Components


    1. BAFANG front motor, China famous electric bike motor supplier. This front-drive motor, which has an inner rotor, is compatible with a disc brake or V brake and has a rated power of 180-250W. Because of its inner rotor design and a large reduction ratio (1:11), the motor's power can be effectively released. Small in size, light in weight, high in efficiency, and smooth & quiet in running, this motor is suitable for city bikes.


    2. Shimano Nexus Inter 3, has three speeds with 36% intervals and an overall gear range of 186%., comparable to a road bike derailleur gear systems. It is designed and intended for urban commuter use.


    3. Shimano Roller brake system, works similarly to a drum brake, but is fitted to the side of the hub with a special adaptor ring. To provide better cooling the roller brake comes with an integrated cooling disc.


    4. ZOOM fork, city trekking series, made with Spring pressure system.


    5. Smart charger, can use input AC: 110 to 240V; have passed CE, RoHS and UL certification. It’s ok in CANADA.


    Specifications


    Model number

    EBS226

    Motor

    BAFANG, 36V 250W front motor

    Battery

    36V 8.4Ah lithium, SAMSUNG cells

    Charge time

    4-8h

    Charger

    110-240V, 36V 2A, plug can be customized

    Controller

    36V 14A

    Speed

    25Km/h

    Driving distance

    40-50km by PAS

    Weight

    27Kgs

    Packing dimension

    1730x250x780mm

    Panel/speedometer

    LED style

    Wheel

    700C

    Tire

    700Cx1.75, KENDA on road tire

    Chain

    1/2*1/8*100L, KMC rust-proof

    Frame

    Aluminum alloy 6061

    Fork

    700C, travel 25MM, 28.6*25.4*230L*30*102MM

    Shift lever

    Shimano 3 speed

    Rear derailleur

    Shimano Nexus Inter 3

    Front brake

    Shimano V Brake

    Rear brake

    Shimano roller Brake

    Brake levers

    Aluminum, waterproof connector

    Rims

    Aluminum alloy,700C*1.75*36H*13G

    Spokes

    Front:13GX277/279; Rear:13GX266/268;

    Pedals

    Wellgo, with ball

    Chainwheel

    1/2*1/8*38T*170L

    Cranks

    Aluminum, 170L

    Freewheel

    18T

    Handlebar

    ZOOM Aluminum, W610x2.0T

    Stem

    ZOOM Aluminum, adjustable

    Grip

    95/140MM

    Seat

    Velo, city bike

    Seat tube

    Aluminum with suspension, 27.2*300*2.0T

    Lamp

    LED for front, SPANNINGA

    Wheel base

    1270mm

    Min ground clearance

    110mm

    Saddle ground clearance

    Max:990mm; Min:790mm

    Handlebar ground clearance

    1150mm

    Licence requirement

    NO

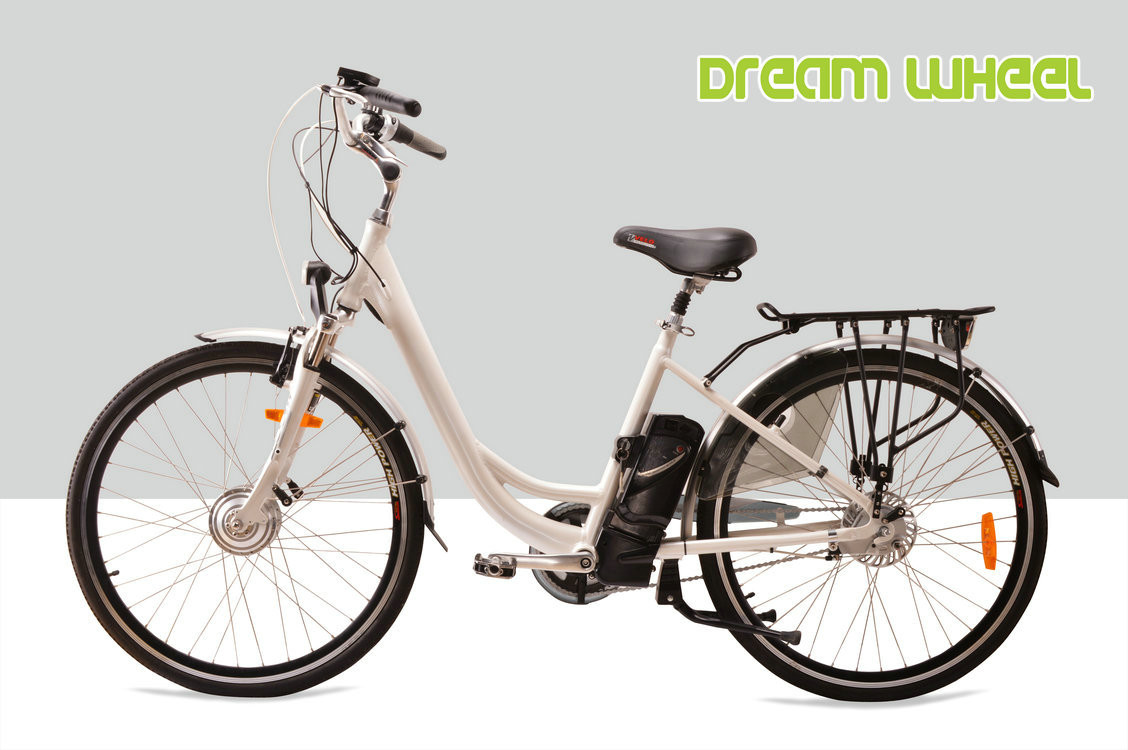

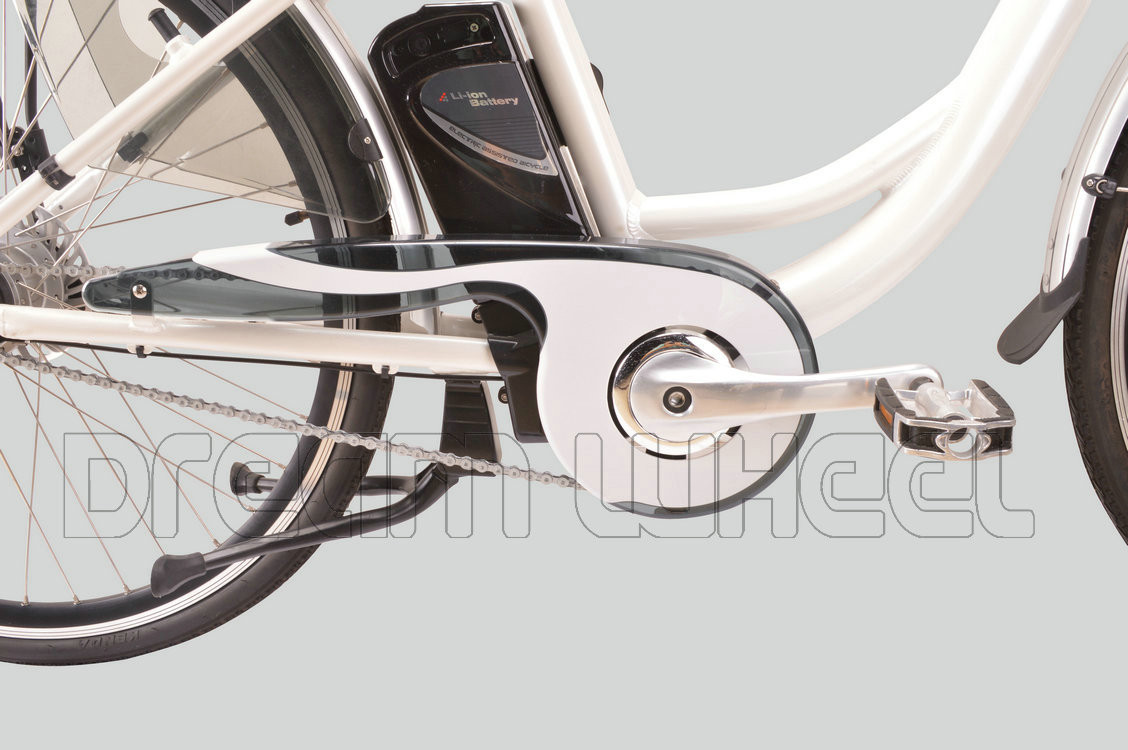

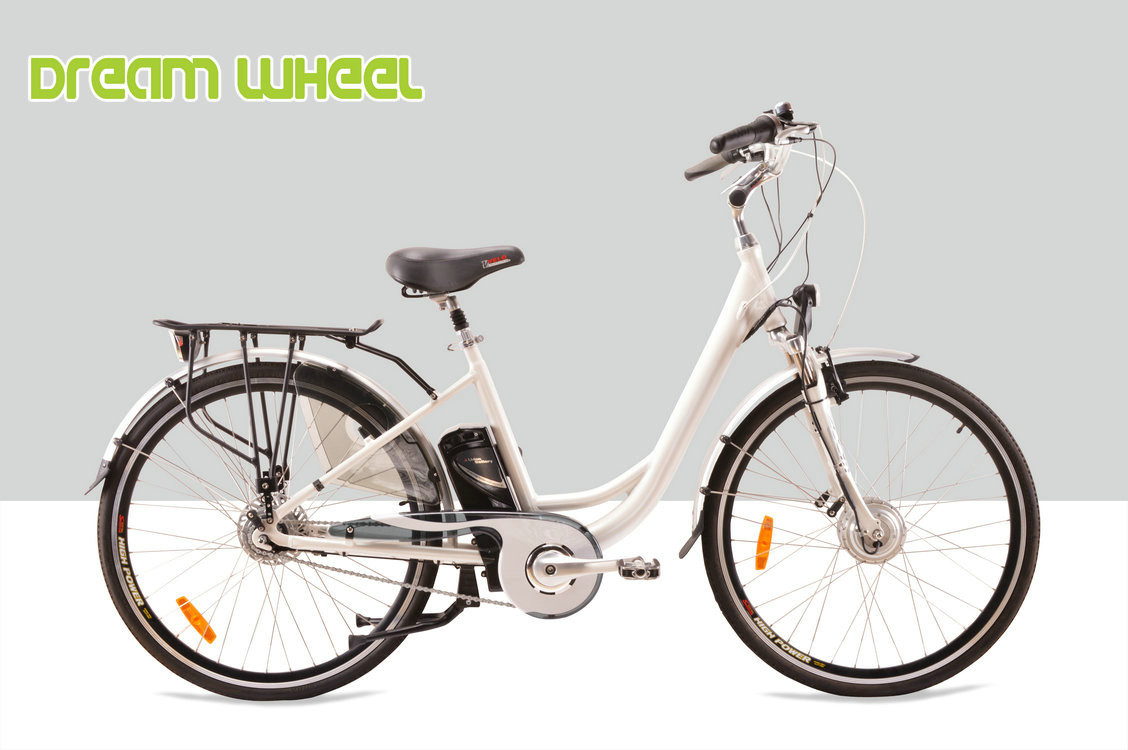

    Pictures Show
